Find & Replace Hardware with Unknown Driver

Overview

Device Pack drivers are occasionally "retired" from the main device pack installation to the legacy device pack. This is done to reduce the size of the device pack, and improve the recording server startup time after device pack changes. However, if you have cameras using drivers that have been removed from the main device pack, you may be left with many cameras offline after an upgrade.

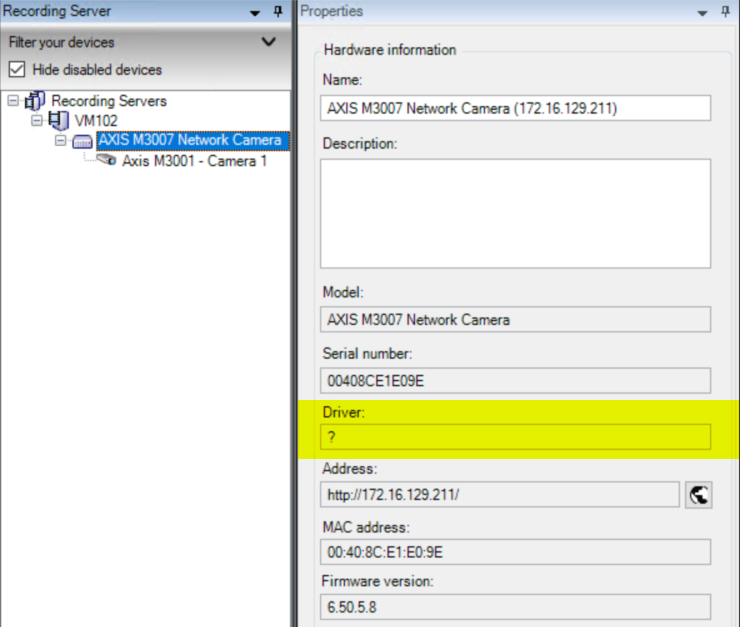

This is what you will find in the hardware properties in the management client if the driver is no longer available on the recording server:

To resolve this issue within the management client, you can right-click on the hardware, choose "Replace Hardware", and step through the wizard where you will select the new driver to use. However, when there are hundreds or thousands of devices that need to use a new driver, doing this by hand requires an unreasonable time commitment. There is no option to perform this in bulk within the management client.

The Set-VmsHardwareDriver command from the MilestonePSTools module allows you to change the driver on one or more devices. This example script helps by finding only the hardware records with an unrecognized driver, prompting you to select one or more of those devices, then prompting for the driver to use on the selected devices before running the Set-VmsHardwareDriver command to change the driver.

The process can still take a long time to process hundreds or thousands of cameras, but while it is running you can step away from the keyboard and work on other tasks.

Instructions

To run this example you can download and run the provided ReplaceUnknownHardwareDrivers.ps1 script, or copy the contents below and paste them into your PowerShell terminal. If there are no cameras with unknown drivers, then no actions will be taken. Also, you will be prompted for confirmation by the Set-VmsHardwareDriver command before any driver changes are made.

If you receive an error indicating that the hardware would have fewer device channels with the new driver than it has on the current driver, you can add the parameter -AllowDeletingDisabledDevices to the Set-VmsHardwareDriver command which will allow the server to delete disabled devices that will not be present after the driver change.

Download

Code

ReplaceUnknownHardwareDrivers.ps1

$drivers = @{}
$recorders = Get-VmsRecordingServer | Out-GridView -Title "Select Recording Server(s)" -OutputMode Multiple
if ($null -eq $recorders) {
    Write-Warning "No recording server selected. No changes will be made."
    return
}

$hardware = $recorders | ForEach-Object {
    $rec = $_
    # Clear cached info about the hardware and drivers on the current recorder
    $rec.HardwareDriverFolder.ClearChildrenCache()
    $rec.HardwareFolder.ClearChildrenCache()

    # Cache all the available drivers on the current recording server

    $rec | Get-VmsHardwareDriver | ForEach-Object {
        $drivers[$_.Path] = $_
    }

    # Ask the user to select one or more hardware with an unrecognized driver
    # For example, you might choose all hardware with "Axis" in the model name
    Get-VmsHardware | Where-Object {
        !$drivers.ContainsKey($_.HardwareDriverPath)
    }
} | Out-GridView -OutputMode Multiple

if ($null -eq $hardware) {
    Write-Warning "No hardware found, or selected, with an unrecognized hardware driver. No changes will be made."
    return
}

$newDriver = $recorders[0] | Get-VmsHardwareDriver | Out-GridView -Title "Select new driver" -OutputMode Single
if ($null -eq $newDriver) {
    Write-Warning "No new driver selected. No changes will be made."
    return
}

$hardware | Set-VmsHardwareDriver -Driver $newDriver

# Note: If the number of devices will decrease after changing the driver,
# you must include the "-AllowDeletingDisabledDevices" parameter, and you
# must ensure that the device channels to be removed are disabled first.
# For example, if the current driver has 4 camera channels and the new
# driver has 2, you would need to disable at least two camera channels
# and then run the command like this:
# $hardware | Set-VmsHardwareDriver -Driver $newDriver -AllowDeletingDisabledDevices
